50mm 640✖512 Thermal Sight

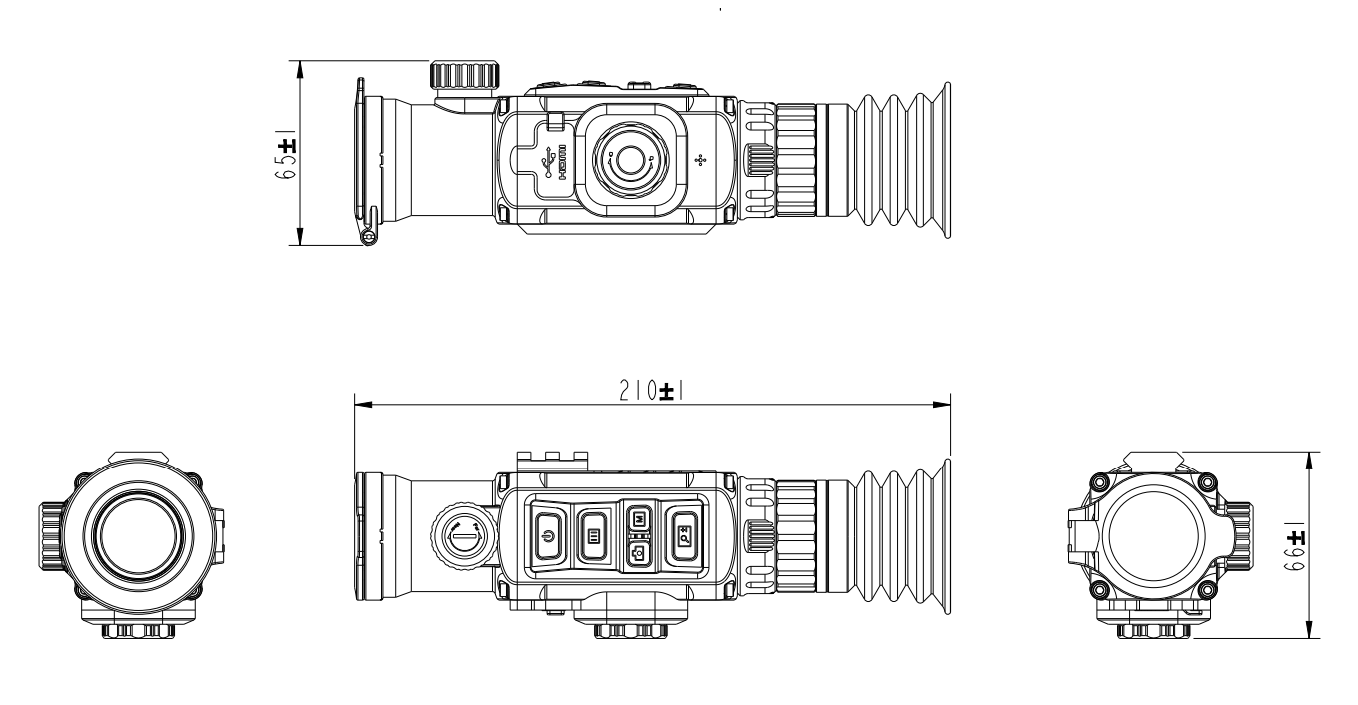

Dimension
Specification
|
Model |
GC-TR650R3AIR |
|
Detector |
|
|
Image Sensor |
UFPA (VOx) |
|
Resolution |
640×512 |
|
Pixel pitch |
12um |
|
Frame rate |
50Hz |
|
NETD |
≤35mk |
|
Optical parameter |
|
|
Focal length |
50mm |
|
Aperture |
F1.0 |
|
Field of view |
7.2°×5.8° |
|
Focus mode |
Manual operation |
|
Detection Range |
2.6km (vehicle) |
|
Image Display |
|
|
Screen Type & size |
0.39inch OLED |
|
Resolution |
1024x768 |
|
Eye relief |
50mm |
|
Exit pupil |
6mm |
|
Brightness Adjustment |
Support |
|
Palettes |
White Hot / Black Hot / Red Hot / Fusion |
|
Digital Zoom |
1×; 2×; 4× |
|
Power |
|
|
Battery type & number |
4 16340 Rechargeable li-ion |
|
Battery parameter |
≥10h (25°C) |
|
External power supply |
5V/ DC 2A USB Type-C |
|
Power Dissipation |
≤2.2W |
|
Battery Operating time |
≥10h （25℃） |
|
Functions |
|
|
Electronic compass |
Support |
|
Attitude sensor |
Support |
|
GPS |
Support (Optional) |
|
WIFI |
2.4G |
|
Storage |
Built-in EMMC (32GB) |
|
General |
|
|
Interface |
USB Type-C |
|
Protection level |
IP67 |
|
Shock resistance |
1000g/0.4ms |
|
Working temperature |
-30°C to +60°C |
|
Dimension |
210mm×65mm×66mm (With lens cover) |
|
Weight |
≤600g (With Battery) |
Optional Accessories
|
Carry Box |
Batteries |
|
|
    |
|
Battery Charger |
USB-Type C Cable |
|
|
|
|
Screen |
Picatinny Rail |
|
|
 |
